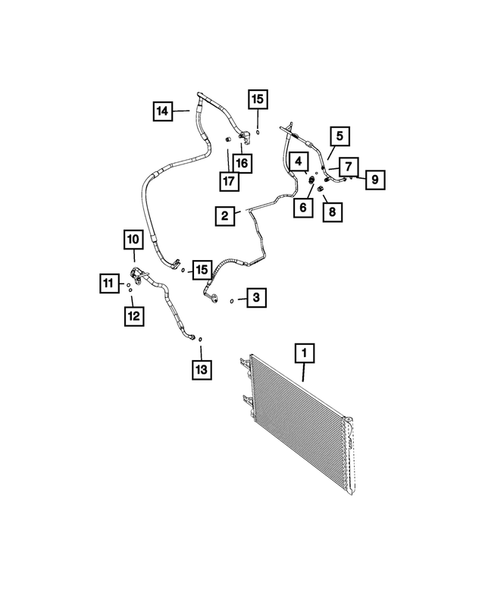

Air Conditioner and Heater Plumbing for 2016 Ram ProMaster 2500

Diagram 1 1. Air Conditioning Condenser Diagram 2 2. Heater Return Hose Diagram 3 3. Hose Clamp Diagram 4 4. Air Conditioning Condenser
No.
Part # / Description / Price
Price
1
57008243AB - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
57008243AB
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-Spd Auto AISIN AS68RC Transmission. 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
View Details
View Details
2
68161106AD - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68161106AD
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
Description: A/C LIQUID
MSRP $331.00
$221.48
MSRP $331.00
$221.48
2
68226767AC - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68226767AC
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
MSRP $200.00
$135.66
MSRP $200.00
$135.66
3
68232799AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232799AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $22.95
$16.46
MSRP $22.95
$16.46
4
68127833AB - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68127833AB
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
MSRP $89.75
$61.10
MSRP $89.75
$61.10
5
68232805AA - Air Conditioners and Heaters: Fitting for Mopar Image
Fitting
68232805AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
Description: Transducer Valve.
MSRP $13.95
$10.04
MSRP $13.95
$10.04
6
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5183358AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $24.55
$17.61
MSRP $24.55
$17.61
7
5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
5003862AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Core. Accumulator.
MSRP $6.95
$4.90
MSRP $6.95
$4.90
8
5161786AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
5161786AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Accumulator. Liquid Line.
MSRP $4.80
$3.39
MSRP $4.80
$3.39
9
68152002AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68152002AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: 3/8". 8.6mm ID. Lhd only.
MSRP $31.60
$22.93
MSRP $31.60
$22.93
10
68157075AC - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68157075AC
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
MSRP $153.00
$102.49
MSRP $153.00
$102.49
11
68232795AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232795AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $23.75
$17.06
MSRP $23.75
$17.06
12
68232796AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232796AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Green.
MSRP $21.50
$15.43
MSRP $21.50
$15.43
13
68100681AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100681AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: 1/2". 3/8".
MSRP $31.95
$23.05
MSRP $31.95
$23.05
14
68226766AA - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68226766AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
MSRP $384.00
$257.64
MSRP $384.00
$257.64
14
68157072AA - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68157072AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE.
MSRP $317.00
$212.44
MSRP $317.00
$212.44
15
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
MSRP $31.70
$22.99
MSRP $31.70
$22.99
