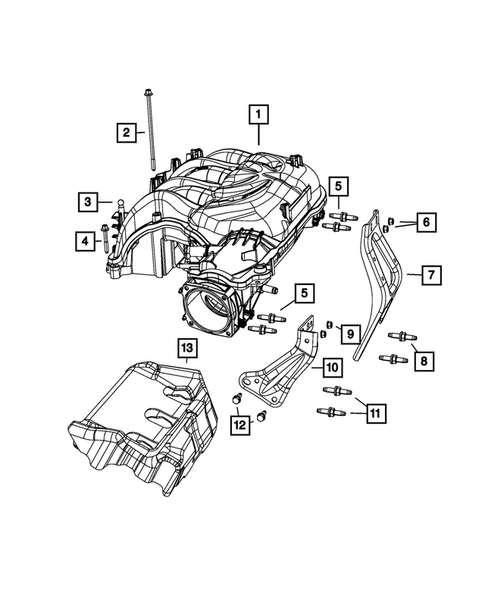

Manifolds and Vacuum Fittings for 2013 Ram 1500
No.
Part # / Description / Price
Price
1
MSRP $560.00
$376.29
2
Torx Flange Head Bolt, Mounting
Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M6x1.00x135.00. M5.74x1.81x135.00. Intake Plenum To Lower Intake Manifold.
MSRP $5.20
$3.69
MSRP $5.20
$3.69
4
Torx Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Fuel Rail to Intake Lower. M5.75x1.81x48.00. Throttle Body/ETC To Upper Intake Plenum. Throttle Body To Intake Manifold Plenum. Intake Plenum To Lower Intake Manifold. Upper Plenum To Lower Intake Manifold. Throttle Body/ETC To Intake Manifold. M5.75x1.81x44.00. Fuel Rail to Intake Manifold.
MSRP $7.45
$5.26
MSRP $7.45
$5.26
6
Hex Flange Nut, Mounting, Front Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Channel Lower. M6x1.00. Lines to Hvac. After 01-09-2002. Included in Sliding Door Glass. Glass to Regulator attaching. Glass Assy. to Window Regulator. Glass atttach to regulator.
MSRP $4.90
$3.51
MSRP $4.90
$3.51
7
MSRP $32.60
$23.41
8
Double Ended Stud, Mounting, Front Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: M8X1.25X51.00. 3.6L P Clip To Block. Intake Manifold Bracket To Cylinder Head. Engine Oil Cooler Tubes To Cylinder Block. Heater Core Return Line to Engine. ETC Support Bracket To Cylinder Head. ETC Support Bracket To Intake Plenum. Intake Manifold Support Bracket To Intake Manifold. EGR Tube Bracket to Intake Manifold. Coil bracket to manifold. Coil mounting.
MSRP $9.20
$6.59
MSRP $9.20
$6.59
10
Intake Manifold Bracket, Rear Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: ETC Support Front.
MSRP $14.45
$10.29
MSRP $14.45
$10.29
12
Hex Head Bolt And Coned Washer, Mounting, Lower Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
MSRP $5.20
$3.69
MSRP $5.20
$3.69
13
Engine Pad Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Intake Manifold Plenum. Under Intake Plenum.
MSRP $57.00
$40.18
MSRP $57.00
$40.18

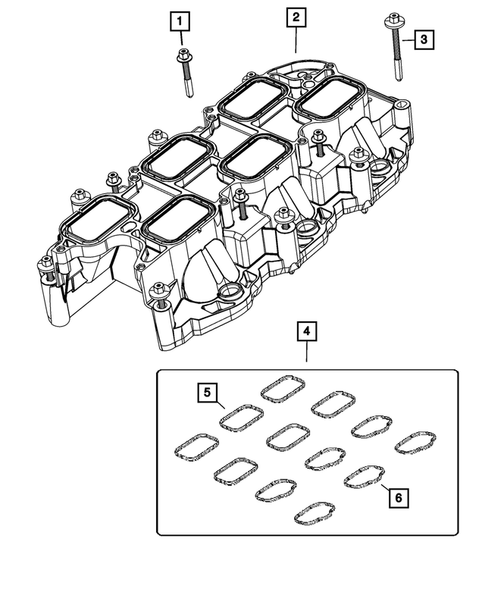

No.
Part # / Description / Price
Price
1
Torx Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Fuel Rail to Intake Lower. M5.75x1.81x48.00. Throttle Body/ETC To Upper Intake Plenum. Throttle Body To Intake Manifold Plenum. Intake Plenum To Lower Intake Manifold. Upper Plenum To Lower Intake Manifold. Throttle Body/ETC To Intake Manifold. M5.75x1.81x44.00. Fuel Rail to Intake Manifold.
MSRP $7.45
$5.26
MSRP $7.45
$5.26
2
Intake Manifold, Lower Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Lower.
MSRP $560.00
$376.29
MSRP $560.00
$376.29
3
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: ETC/Throttle Body To Intake Manifold. Lower Intake Manifold P To Cylinder Head.
MSRP $8.95
$6.35
MSRP $8.95
$6.35
4
MSRP $59.00
$41.77
5
Intake Plenum Gasket Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: NOT Included With Long Block Engine Install Kit. Upper Intake Plenum To Lower Intake Manifold.
MSRP $9.35
$6.78
MSRP $9.35
$6.78
6
Intake Manifold Gasket Mopar
Mopar Notes: Engines: 3.6L V6 FFV 24V VVT Engine.
Description: Lower.
MSRP $19.60
$14.10
MSRP $19.60
$14.10
